Name: 4060 LT GX
Brand: SCOR
SKU: 30002911
Price: 5999.0 EUR
Availability: OutOfStock

4060 LT GX | SCOR | bikes | Mountain, Mountain | Enduro

Root Beer

160mm Rear / 170mm Front Travel, 29” Wheels
Fox 38 Factory / Fox Float X2 Factory Suspension
SRAM GX Eagle Drivetrain, SRAM Code RSC Brakes

EUR 6.899,00 EUR 5.999,00

Tax included.

SKU: 30002911

Size

Compatible Parts & Accessories

Add a Shock

Shipped to your local bike shop

Check availability within our Retailer Network

[{"id":48081558667596,"title":"S","option1":"S","option2":null,"option3":null,"sku":"30002911","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"4060 LT GX - S","public_title":"S","options":["S"],"price":599900,"weight":17000,"compare_at_price":689900,"inventory_management":"shopify","barcode":"7630027889451","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":48081558733132,"title":"M","option1":"M","option2":null,"option3":null,"sku":"30002912","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"4060 LT GX - M","public_title":"M","options":["M"],"price":599900,"weight":17000,"compare_at_price":689900,"inventory_management":"shopify","barcode":"7630027889444","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":48081558798668,"title":"L","option1":"L","option2":null,"option3":null,"sku":"30002913","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"4060 LT GX - L","public_title":"L","options":["L"],"price":599900,"weight":17000,"compare_at_price":689900,"inventory_management":"shopify","barcode":"7630027889536","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":48081558962508,"title":"XL","option1":"XL","option2":null,"option3":null,"sku":"30002914","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"4060 LT GX - XL","public_title":"XL","options":["XL"],"price":599900,"weight":17000,"compare_at_price":689900,"inventory_management":"shopify","barcode":"7630027889628","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

If you like to play hard when you play the mountains, then the 4060 LT GX would like to get your number. The gnar-loving full-carbon frame matched with top-draw suspension components gives zen-like composure on even the most rowdy of rides. And, with a no-compromise build kit that majors on performance, this is an enduro bike that comes dressed to impress and ready to rock.

Technology

Full Carbon Frame

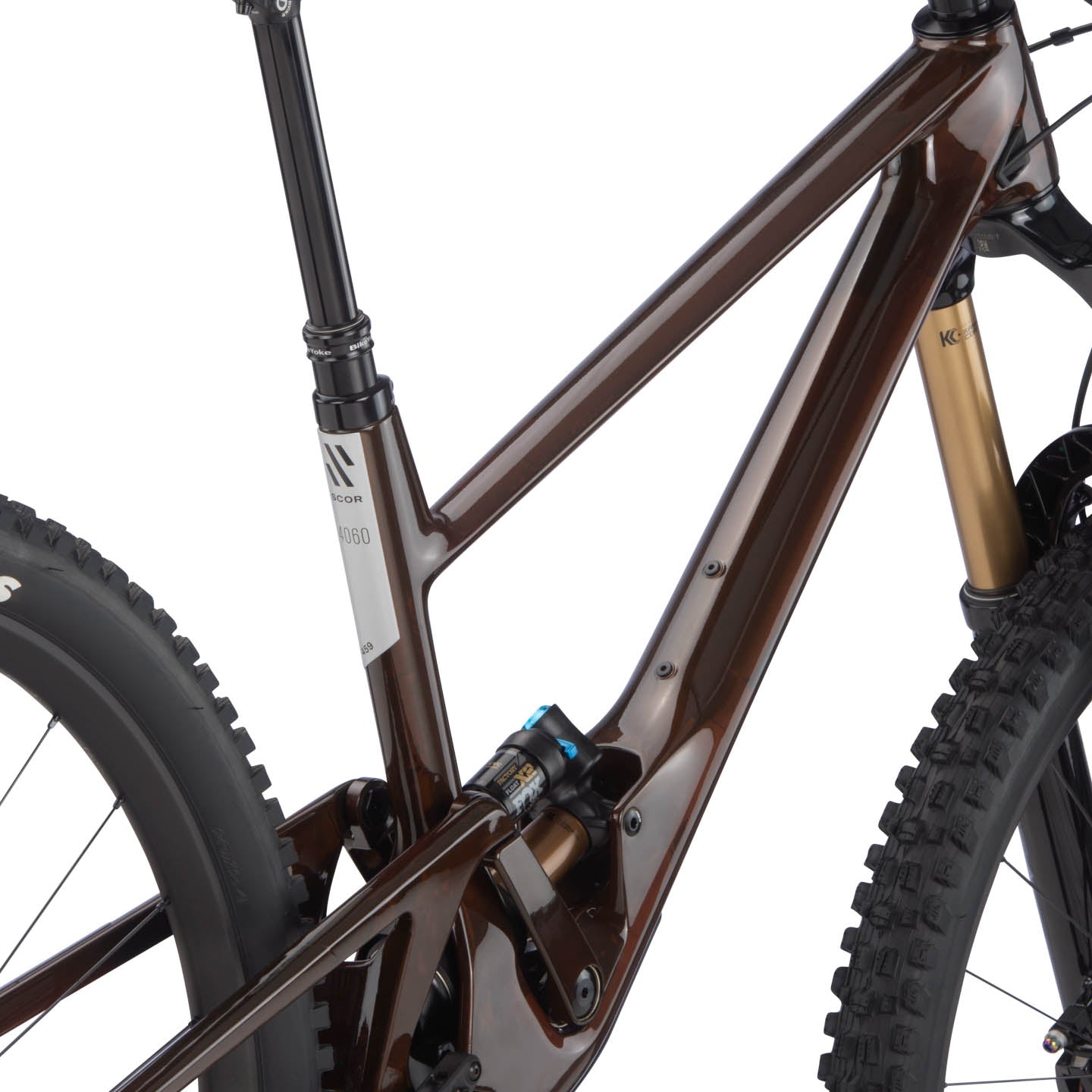

Designed for feel, engineered with precision. Expertly laid up high-quality composites make for a frame that is light, stiff and strong enough to shrug off drops, bails and fails. Guided internal cable routing means its beauty is more than skin deep.

Options

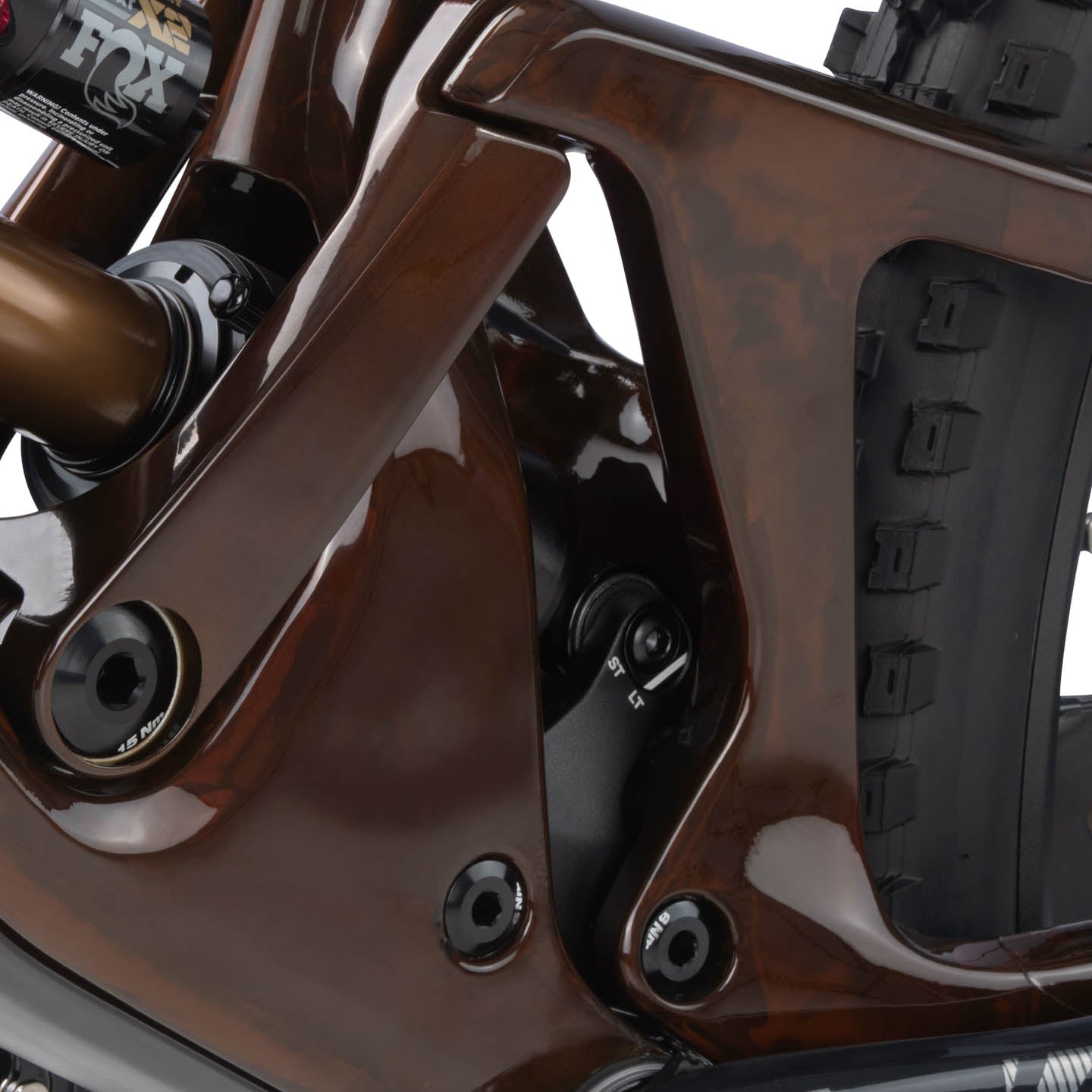

One frame, two travel options. Choose from 160mm or 140mm of rear travel just by changing the rear shock, either way a flip-chip and stealth angle-adjust headset mean you won’t be compromising on geometry.

Superior Suspension

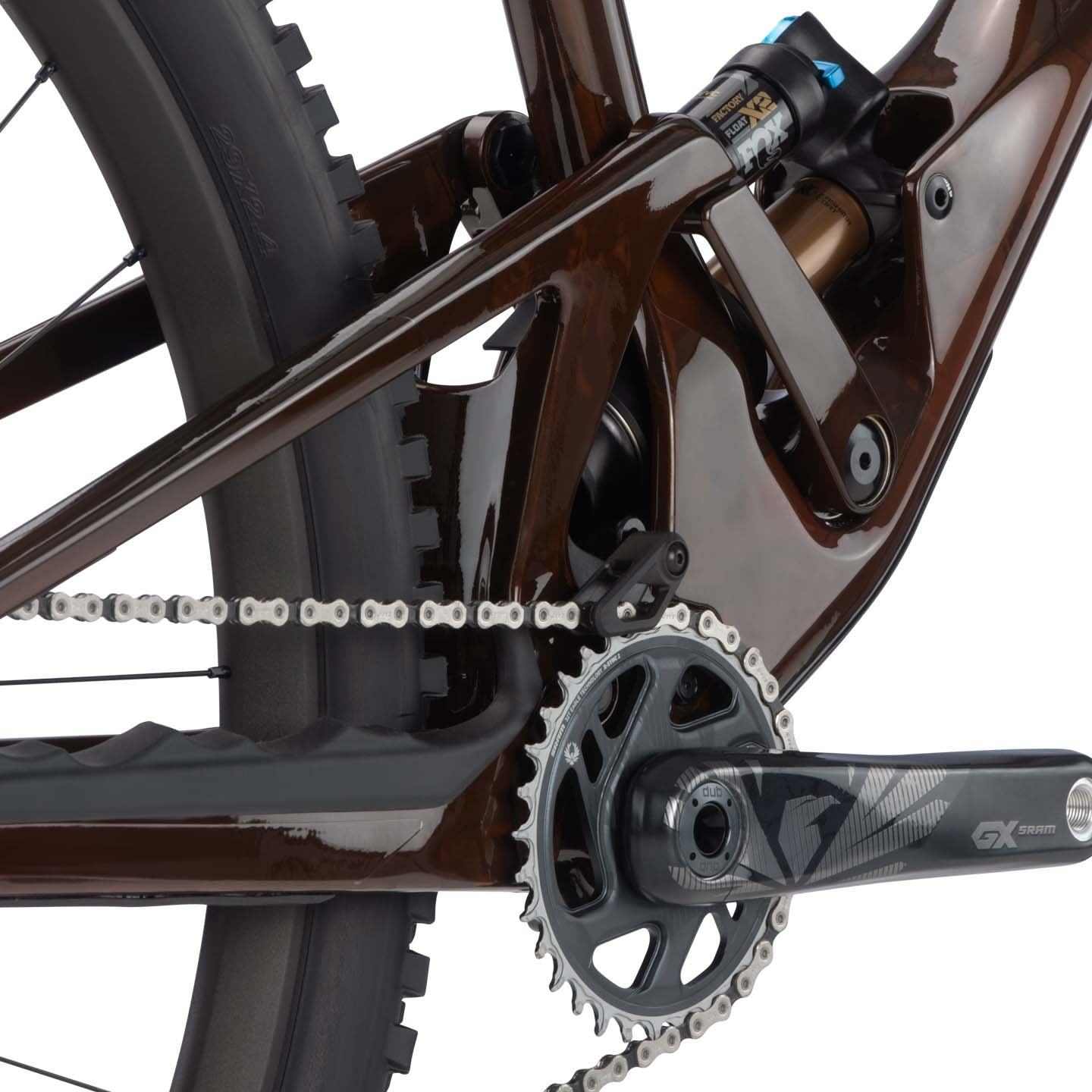

Our lower-link activated virtual pivot suspension design is supple off the top for all time grip with progressive support for when you go all too deep. Smart design keeps things stiff, low and air or coil shock compatible.

Stash Box

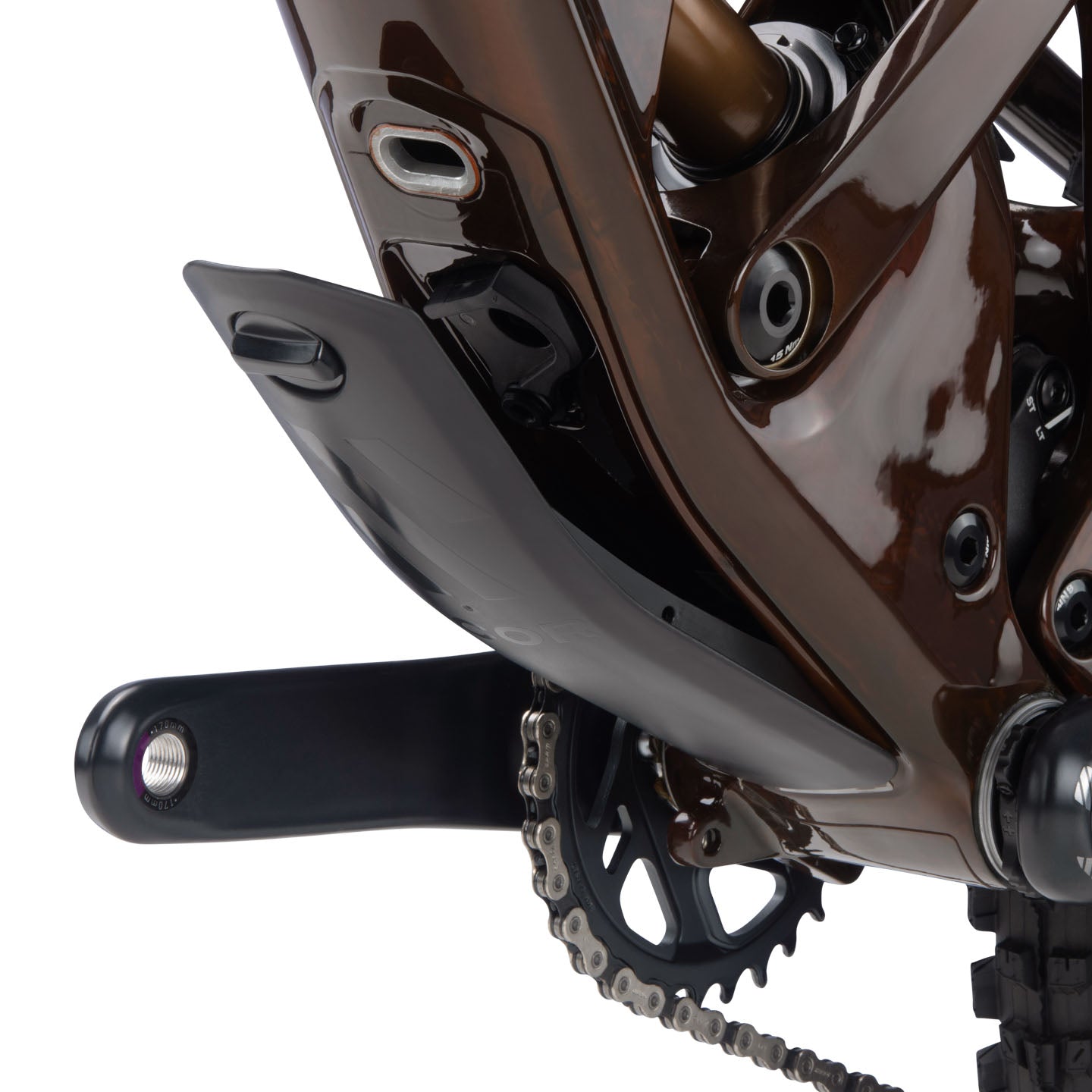

Mechanicals happen, but they don’t have to ruin your ride. With a spare Universal Derailleur Hanger (SRAM UDH) included and enough space for a multitool and tire plugs, the downtube stash box keeps your trailside essentials on hand. Ride on.

Technical Details

Frameset

Fork:
Fox 38 Factory GRIP2 | 170mm Travel | 44mm Rake

Suspension

Front Suspension:
Fox 38 Factory GRIP2 | 170mm Travel | 44mm Rake

Rear Suspension:
Fox Float X2 Factory | 205 x 62.5mm Trunnion

Cockpit

Stem:
Burgtec Enduro MK3 | 31.8mm Bar Bore | 35mm Length | 0° Angle

Grips:
Burgtec Bartender Pro

Seat

Seatpost:
Bikeyoke Divine | S 125mm | M / L 160mm | XL 185mm Travel | Triggy Alpha lever

Saddle:
WTB Silverado Titanium | Medium

Drivetrain

Crankset:
SRAM GX Eagle Carbon Lunar | 170mm Length

Chainrings:
SRAM GX Eaglerings

Cassette:
SRAM GX XG-1275 Eagle

Cassette Size:
10-52T

Chain:
SRAM GX Eagle

Rear Derailleur:
SRAM GX Eagle

Shifters:
SRAM GX Eagle Trigger

Gears:
1 x 12

Bottom Bracket:
DUB Interface

Brakes

Brake Levers / Calipers:
SRAM Code RSC

Rotors:
SRAM Centerline | 6-Bolt

Rotor Size (F/R):
200mm

Wheels

Rims:
DT Swiss EX 1700 SPLINE | 30mm Internal Width | Tubeless ready

Hubs (F/R):
DT Swiss 350 | Ratchet SL Freehub | Straightpull Spoke Interface | Boost spacing

Tires:
Maxxis Assegai 29 x 2.5" 3C MaxxGrip Exo+ TR (F) | Maxxis Dissector 29 x 2.4" 3C MaxxTerra DD TR (R)

Tubeless Information:
Tubeless Ready Rims | Tubetype Tires

Additional Information

Tire Clearance:
Width: 64mm | Diameter: 750mm

ASTM Classification:
Level 4

System Weight Limit:
120kg

General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)

Size	S	M	L	XL
Rider Height	155 - 170	165 - 180	175 - 190	185 - 200
BB Drop (SLACK)	21	21	21	21
BB Drop (STEEP)	18	18	18	18
BB Height (SLACK)	348	348	348	348
BB Height (STEEP)	351	351	351	351
Chainstay	432	432	432	432
Fork Length	580	580	580	580
Fork Rake	44	44	44	44
Front Center (SLACK)	773	798	823	853
Front Center (STEEP)	761	785	810	840
Head Tube	87	99	115	127
HT Angle (SLACK)	63.8	63.8	63.8	63.8
HT Angle (STEEP)	65	65	65	65
Reach (SLACK)	435	459	485	515
Reach (STEEP)	431	456	481	511
Seat Tube	400	425	440	470
ST Angle @750mm Saddle Height (SLACK)	76.5	76.5	76.5	76.5
ST Angle @750mm Saddle Height (STEEP)	76	76	76	76
ST Angle Actual (SLACK)	69	69	69	69
ST Angle Actual (STEEP)	68.5	68.5	68.5	68.5
ST Angle Effective (SLACK)	77.9	77.9	77.9	77.9
ST Angle Effective (STEEP)	77.4	77.4	77.4	77.4
Stack (SLACK)	601	612	626	637
Stack (STEEP)	603	615	629	640
Stand Over Height (80 in Front of BB)	759	771	775	791
Stand Over Height (Lowest Point)	722	731	739	749
Top Tube (SLACK)	562	590	621	655
Top Tube (STEEP)	564	592	623	657
Wheelbase (SLACK)	1206	1230	1255	1285
Wheelbase (STEEP)	1193	1217	1242	1272

SCOR 4060 Shock Compatibility EN
SCOR 4060 Frame Size Guide EN
SCOR 4060 User Manual EN

4060 LT GX
